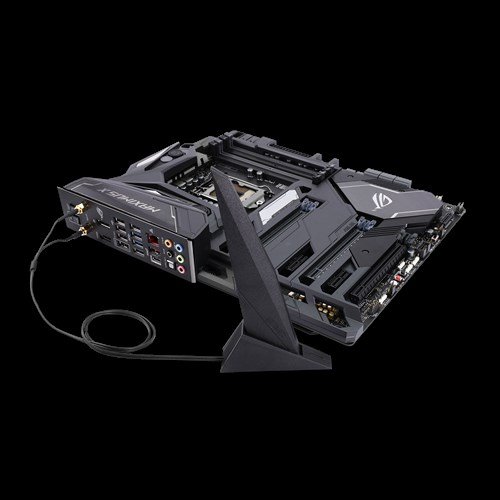

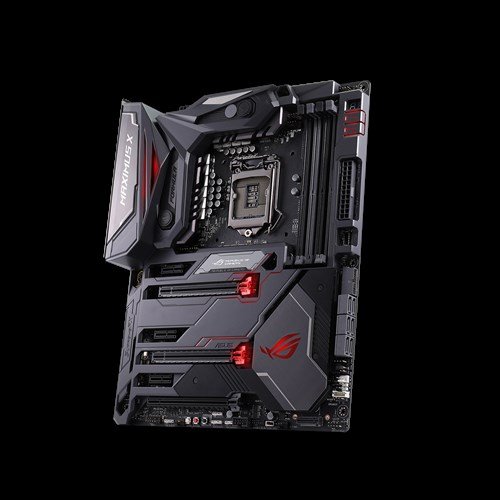

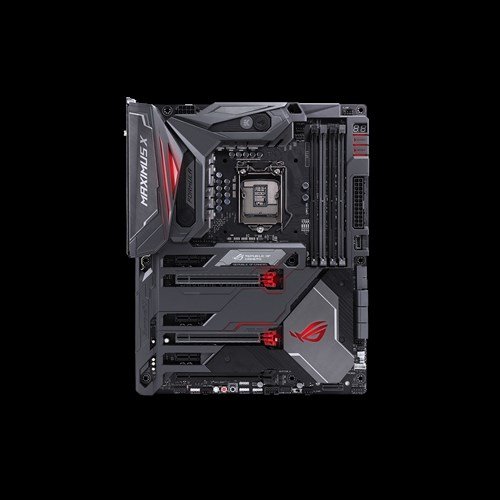

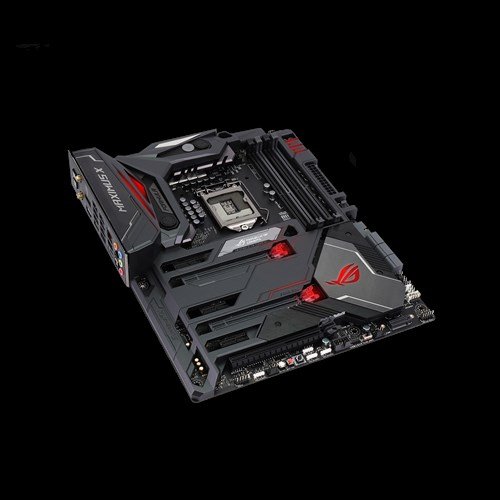

ROG MAXIMUS X FORMULA

Memori
4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

• Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Grafis
Integrated Graphics Processor

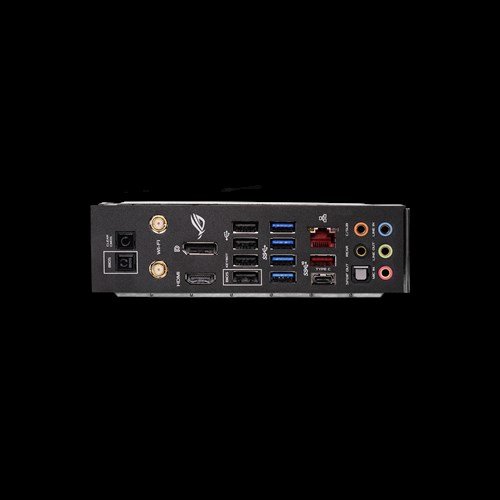

Multi-VGA output support : HDMI/DisplayPort 1.2 ports

• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
• Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 1024 MB
  Dukungan Multi-GPU
  Supports NVIDIA® 2-Way SLI™ Technology
  Supports AMD 3-Way CrossFireX™ Technology
  Slot Ekspansi
  2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4)
  1 x PCIe 3.0/2.0 x16 (x4 mode, black) *1
  3 x PCIe 3.0/2.0 x1
  Storage
  Intel® Z370 Chipset :
  1 x M.2 Socket 3, with M Key, type 2
